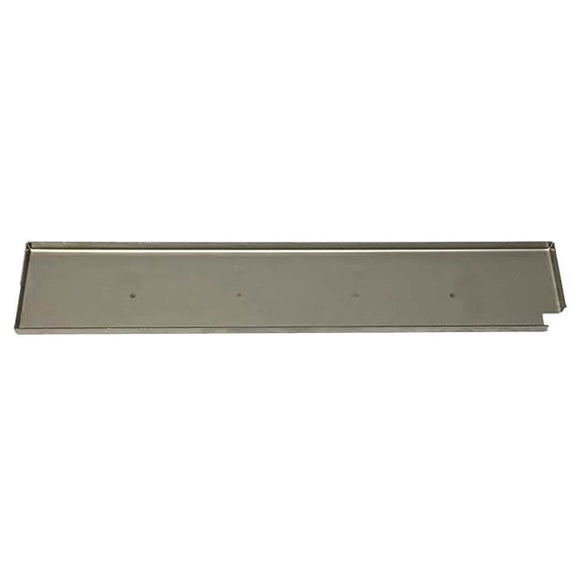

Fire Magic Deluxe Classic Drip Collector without Flange - 3200-15

$61.20 $68.00 Save $6.80

Fire Magic Grills SKU: 3200-15 Barcode: 61965500261

Available Now!

The Fire Magic 3200-15 is the front drip tray without flange for Deluxe Classic Drop-In Series 31 grills. It is separate from the flanged tray and lower collector.

Add $199.00 more for FREE shipping!

Fire Magic 3200-15 Front Drip Tray Without Flange

Product Description

The Fire Magic 3200-15 replaces a missing or damaged front drip tray in the Deluxe Classic Drop-In Series 31 grill. If the old tray has holes or no longer sits correctly, replacing it helps keep drippings on their intended path to the lower collector.

Compatible Models

Fire Magic Deluxe Classic Drop-In Series 31.

Fitment and Ordering Notes

This is the upper tray without a flange. It is separate from the rear flanged tray, part 3200-12, and the lower collector, part 3200-10. The rear tray’s flange overlaps this front tray when the system is installed.

See the Specs tab for placement, removal, cleaning instructions, and the official owner’s manual.

Add custom text to your tabs

Technical Specifications

  • Brand: Fire Magic
  • Part Number: 3200-15
  • Part Type: Drip tray without flange
  • Compatibility: Deluxe Classic Drop-In Series 31
  • Installation Position: Front portion of the upper drip-tray system
  • Quantity Used Per Series 31 Grill: 1
  • Related Components: 3200-12 drip tray with flange; 3200-10 lower drip tray collector

Removal and Installation Notes

Allow the grill to cool completely. Turn the control knob to OFF and shut off the gas supply. Wear appropriate gloves and safety glasses.

Remove the cooking grids and flavor grid and set them aside. Lift and slide the tray to the left, then pull it out from between the two burners.

To install the tray without flange, hold it with the corner notch at the top left. Insert it between the two burners, guide it through the left side of the unit frame, and rest it on the two middle bars below the liner shell. Position it toward the front of the grill.

Keep the lower collector at the far left of the unit. The rear tray with flange must overlap the front tray. Reinstall the flavor grid and cooking grids. The manual requires at least 6 inches of clearance on the left side for drip-tray removal.

Cleaning and Care

Check and clean the drip collection system after each use, once the grill is cool. Dispose of the contents appropriately. Clean the trays with soapy water as needed; a copper pad may be used for tough deposits. Rinse and dry completely before reinstalling. Ensure the collection system is clean and properly installed before using the grill.

Manuals and Documentation

Fire Magic Deluxe Classic Drop-In Series 31 Installation and Owner’s Manual (C2-018)
