Fire Magic 1 Hour Gas Timer Box - 5520-01T
Product Description

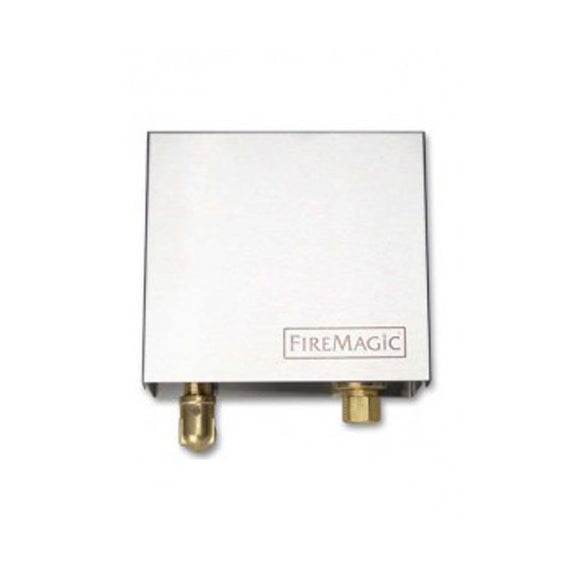

The Fire Magic Quick Disconnect Gas Connection Box provides a controlled and secure gas connection point for outdoor kitchen installations. Designed with an integrated one-hour shut-off timer, the box automatically stops gas flow after the selected interval, adding an extra layer of safety during grill or appliance operation.

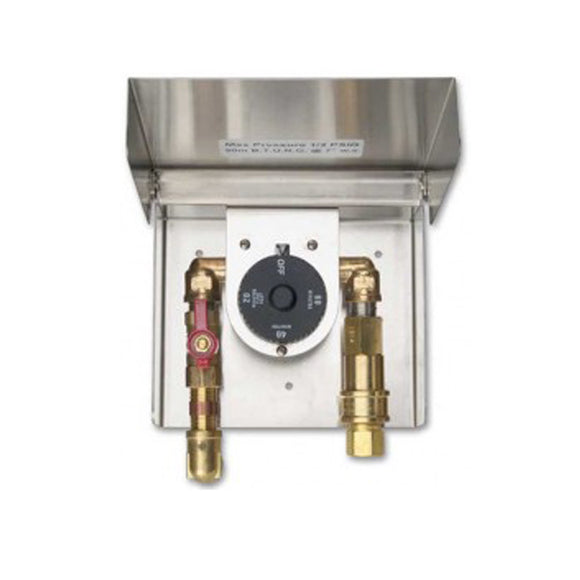

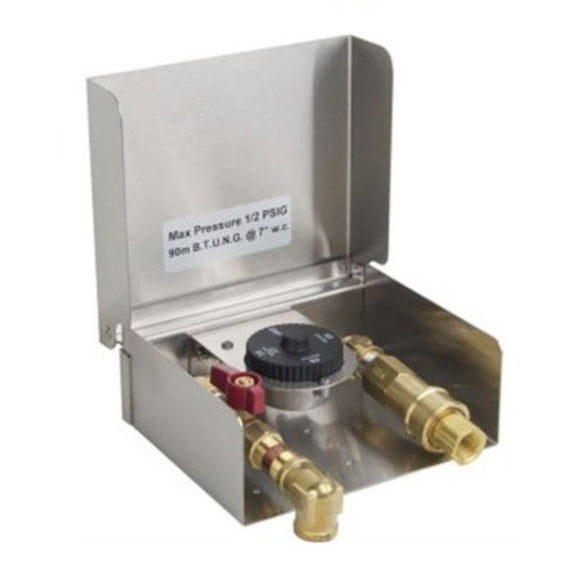

The quick disconnect fitting allows appliances to be connected and removed without tools, while the stainless steel enclosure protects internal components from outdoor exposure. The timer dial is clearly marked in twenty-minute increments, making it easy to set a desired shut-off period.
Key Features
- Integrated 1-hour gas shut-off timer for added safety
- Quick disconnect fitting for easy appliance connection
- Compatible with natural gas and propane systems
- Clearly marked timer dial with 20-minute increments
- Stainless steel enclosure designed for outdoor installations
Why Buy
A timed gas shut-off helps reduce the risk of accidental gas flow if an appliance is left running unattended. This connection box combines convenience and safety by pairing a quick disconnect with an automatic shut-off mechanism in a compact, durable enclosure.
Practical Note
This component should be installed by a qualified professional in accordance with local gas codes. After installation, test all connections for leaks before placing appliances into service.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Fire Magic |
| Model Number | 5520-01T |
| Product Type | Gas connection box with shut-off timer |
| Fuel Compatibility | Natural gas and propane |
| Timer Range | Up to 1 hour (20-minute increments) |
| Connection Size | 1/2" NPT inlet and outlet |
| Maximum BTU Rating | 90,000 BTU (natural gas), 138,000 BTU (propane) |
| Housing Material | 16-gauge stainless steel body with 22-gauge stainless steel cover |
| Overall Dimensions | 8" W x 7 1/4" H x 3" D |
