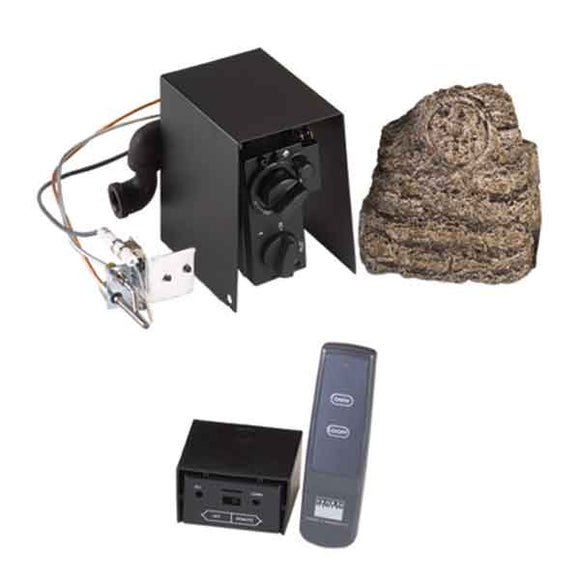

APK-15 Automatic Pilot Kit
Product Description
The Real Fyre APK-15 Automatic Pilot Kit is a safety pilot and control system designed to manage ignition and flame height on compatible Real Fyre burners. Use the piezo igniter switch for manual pilot operation, or control flame height and heat output using the included variable remote from your seating area.
This kit is built around a safety valve with a standing pilot and is intended for natural gas or propane applications when paired with the appropriate compatible burner system.
At-a-Glance
| Brand | Real Fyre |
| Model | APK-15 |
| System Type | Automatic safety pilot system with variable remote |
| Control | Standing pilot safety valve with variable flame-height remote control |
| Fuel Compatibility | Natural gas or propane (when paired with a compatible burner setup) |
| Compatible Real Fyre Burners | G4, G45, G45-2, and P listed burners |
Key Features
- Automatic safety pilot system with a standing pilot safety valve for controlled operation.
- Variable flame-height adjustment using the included VR-1A remote and receiver.
- Manual pilot operation through a piezo igniter switch that includes a heat shield.
- Designed for use with specific Real Fyre burner series for consistent fit and function.
- Kit includes the VR-1A variable remote, receiver, and a decorative wood chunk.
Why Buy
Choose the APK-15 when you want remote-adjustable flame control while keeping a standing pilot safety valve in the system. It is a practical match for Real Fyre owners who want a single control kit that supports both manual pilot operation and seated, day-to-day flame adjustment on compatible burner series.
Expert Installation & Performance Notes
For safety and code compliance, any assembly of gas components should be performed by a licensed professional contractor. For island or fireplace planning, confirm burner compatibility before ordering so the control kit and burner system are correctly matched. A practical advantage here is day-to-day flame adjustment from the included remote, which can make it easier to fine-tune heat output for comfort once the system is properly installed and commissioned.
FAQ
Q: What does the APK-15 kit do?
A: It provides an automatic safety pilot system with a standing pilot safety valve and variable flame-height control using the included remote and receiver.
Q: Can I operate the pilot without the remote?
A: Yes. The kit allows manual pilot operation using the piezo igniter switch, which includes a heat shield.
Q: Which burners are compatible with this kit?
A: It is listed as compatible with Real Fyre G4, G45, G45-2, and P-listed burners.
Q: Is this kit for natural gas or propane?
A: It is specified for natural gas or propane applications when used with a compatible burner setup.
Q: What comes in the box?
A: The kit includes a safety valve with a standing pilot, VR-1A variable remote, receiver, and a decorative wood chunk.
Q: Can this be controlled from a wall switch instead of the remote?
A: An optional WS-3 hardwire wall switch kit is noted as an available accessory for easy operation.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Real Fyre |
| Model | APK-15 |
| System Type | Automatic safety pilot system with variable remote |
| Pilot Type | Standing pilot |
| Control Method | Piezo igniter switch (with heat shield) and VR-1A variable remote with receiver |
| Temperature Rating | 225° |
| Fuel Compatibility | Natural gas (NG) or propane (LP) |
| Max BTU Input | 85,000 (NG) / 135,000 (LP) |
| Compatible Burners | G4, G45, G45-2, P listed burners |
| Included Components | Safety valve with standing pilot, VR-1A variable remote, receiver, decorative wood chunk |

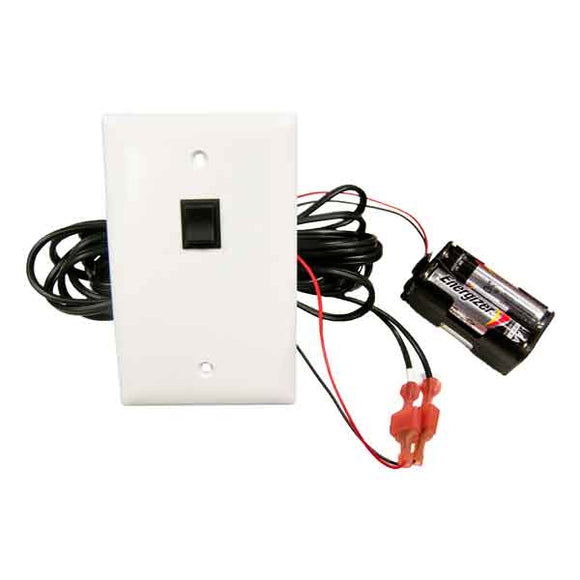

| Optional Accessory | WS-3 hardwire wall switch kit with rocker switch and 15-foot wire harness |
| Safety Note | The assembly of gas components should be performed by a licensed professional contractor |
- Important: For your safety, any assembly of gas components should be done by a licensed professional contractor
