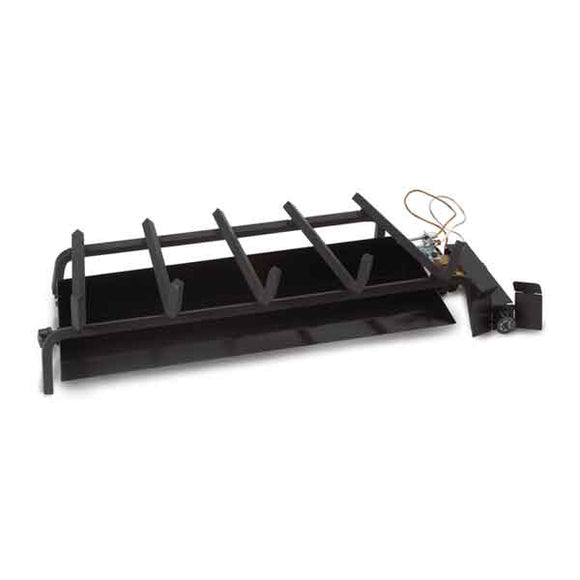

G45 Triple T Burner System
Product Description
The Real Fyre G45 Triple T Burner System is a vented burner platform designed to support compatible Real Fyre gas log sets while emphasizing the ember bed and front flame presentation. It is built for installation in a wood-burning fireplace with a functioning flue and is intended for decorative vented gas log operation when installed and operated per the manufacturer’s instructions.
Key Features
- Triple burner layout designed to support ember presentation and front flame visibility
- Compatible with a wide range of Real Fyre vented log styles
- Multiple factory control configurations available to match common operating preferences
- Designed for use in a solid-fuel-burning fireplace with the damper open during operation
Why Buy
- Solid choice when you want a dedicated burner platform that pairs with Real Fyre vented gas logs
- Control options allow you to match the burner system to how you want to light and operate your fireplace
- Designed as a complete burner system approach rather than piecing components together
Practical Note
This is a vented decorative burner system intended for installation in a wood-burning fireplace with a working flue. Verify gas type and burner sizing requirements before ordering, and follow the manufacturer's installation and placement instructions. Installation and service should be performed by a qualified professional.

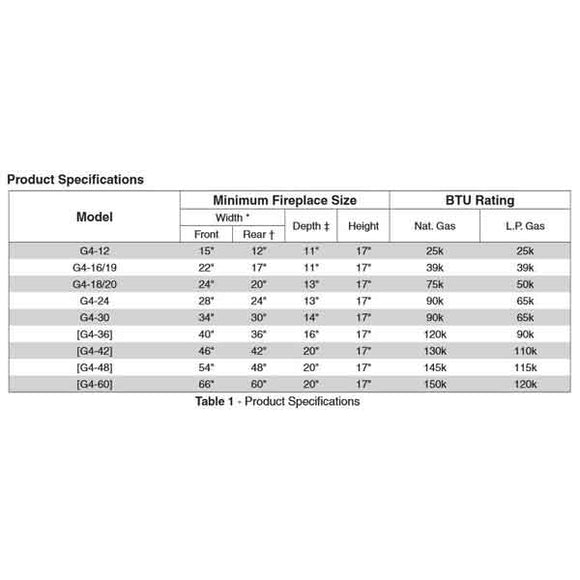

Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Peterson Real Fyre |
| Product Name | G45 Triple T Burner System |
| Model | G45 |
| Fuel Type | Natural Gas or Propane (model dependent) |
| Venting Type | Vented |
| Certification | Design certified to ANSI Z21.60 / CSA 2.26 (model dependent) |
| Control Options | Match Lit (Natural Gas only), Manual valve with standing pilot (-A), Millivolt valve with standing pilot and variable flame height remote (-17), Electronic valve with IPI and on/off remote (-02) |
| Available Sizes | 16/19, 18/20, 24, 30, 36, 42, 48, 60 |
| ANSI Certified Size Range | 16/19 through 36 (model dependent) |
| BTU Rating Range | Natural Gas: 40,000-110,000 BTU; Propane: 30,000-90,000 BTU (varies by size and configuration) |

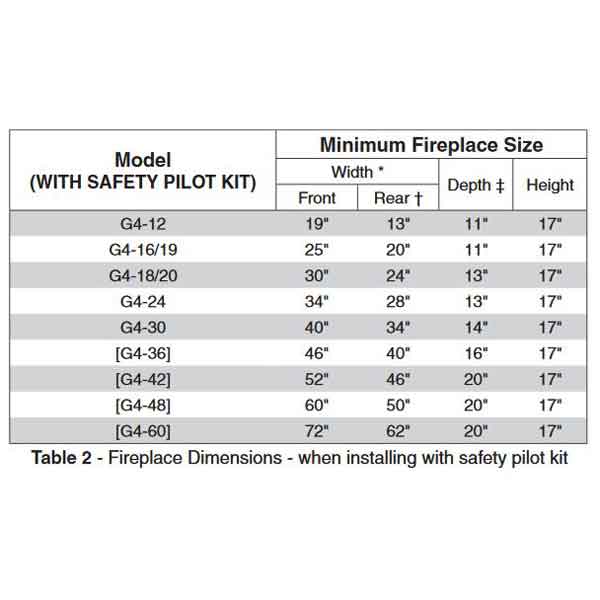

| Minimum Fireplace Size Requirements | Varies by size. Refer to the manufacturer's installation manual for minimum front width, rear width, depth, and height requirements. |
| Typical Application | Decorative vented gas log burner system installed in an existing wood-burning fireplace |
- Important: Any connection of gas components should be done by a licensed contractor
