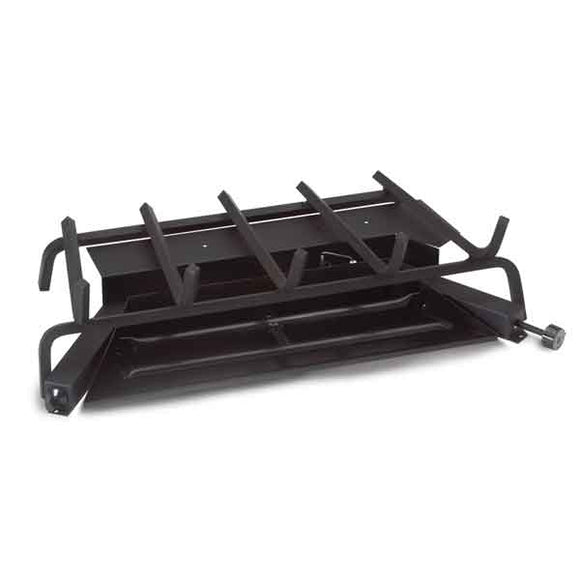

G46 ANSI Certified Burner System
Product Description
The Real Fyre G46 is a vented burner system designed to be paired with compatible Real Fyre gas log sets and installed in a solid-fuel burning fireplace with a working flue. It is offered for natural gas or propane and is ANSI certified as a decorative gas appliance for this application.
This burner platform is known for a clean log presentation, hidden control placement at the rear of the burner, and a glowing ember bed effect. Your final configuration depends on the valve series selected, including options that support on/off or variable flame control by remote.
At-a-Glance
| Brand | Real Fyre (R.H. Peterson) |
| Series | G46 ANSI Certified Vented Burner System |
| Application | Vented decorative burner system for solid-fuel burning fireplaces (log set sold separately) |
| Gas Type | Natural gas or propane versions (not field convertible) |
| Controls | Hidden rear controls, standing pilot options, remote-capable valve options (varies by series) |
| What’s Included | Burner with pre-assembled control valve and regulator, piezo igniter, custom grate, glowing embers, sand (NG) or vermiculite (LP), connector kit, log locators, damper clamp |
Key Features
- ANSI-certified vented burner system for solid-fuel burning fireplaces with a working flue
- Hidden rear control placement helps keep the presentation focused on the log set and ember bed
- Glowing embers and media support a realistic ember appearance with compatible log sets
- Multiple valve series options available, including remote-capable operation and variable flame control (model dependent)
- Designed for compatibility with many Real Fyre log styles (log set purchased separately)
Why Buy
Choose the Real Fyre G46 when you want an ANSI-certified vented burner platform that supports a traditional gas log presentation and gives you flexibility in controls. It is a practical fit for shoppers selecting a Real Fyre log set and wanting a burner system with hidden controls and a standing pilot option, with the ability to step into remote operation depending on the valve series selected.
Expert Installation & Performance Notes
- For island planning or fireplace planning: this is a vented decorative system intended for installation in a solid-fuel burning fireplace with a working flue. The damper must be fixed open, and a damper clamp is included to help maintain the required permanent opening.

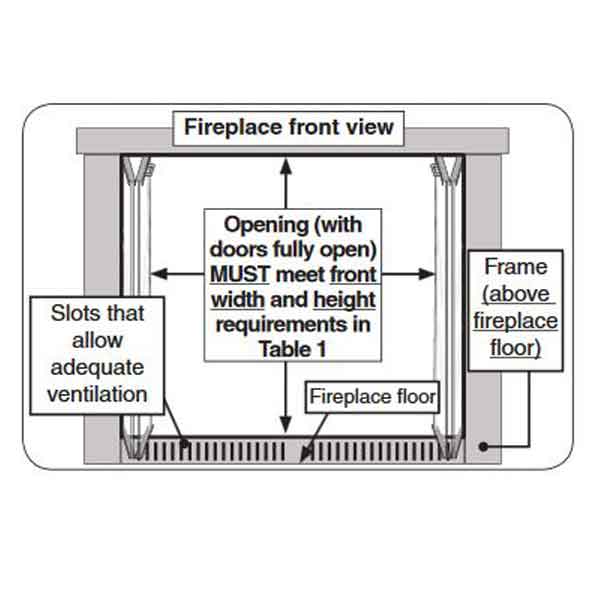

- If your fireplace has glass doors, plan to operate with doors fully open during use, and verify the fireplace opening meets the manufacturer’s minimum size requirements for your selected burner size.
- Order the correct gas type up front. The manual specifies that the appliance is not field convertible between natural gas and propane.
- Valve series impacts day-to-day operation. If you want remote on/off or variable flame control, select the appropriate series option when ordering.
FAQ
Q: Can I use the G46 with natural gas or propane?
A: It is offered in natural gas or propane versions. Order the correct gas type, as the appliance is not field convertible.
Q: Does this include the log set?
A: No. The burner system and components are included, but the decorative log set is purchased separately.
Q: What valve options are available for the G46 burner system?
A: The series options include manual with standing pilot, millivolt with standing pilot, and on/off remote capability, millivolt with variable flame control by remote, and electronic (IPI) with on/off remote capability. Availability depends on the specific model ordered.
Q: How do I choose the right size?
A: Match the burner size to your fireplace opening and depth requirements and to the log set size you plan to install. Use the minimum fireplace size requirements in the specifications table below as a planning checkpoint.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Real Fyre (R.H. Peterson) |
| Series | G46 ANSI Certified Vented Burner System |
| Certification | ANSI Z21.60 / CSA 2.26 (Decorative gas appliances for installation in solid-fuel burning fireplaces) |
| Approved Gas Types | Natural gas or propane (order-specific); not field convertible |
| Available Burner Sizes | 18/20 inch, 24 inch, 30 inch |
| BTU Rating by Size | 18/20: 40,000 BTU (NG) / 40,000 BTU (LP) 24: 55,000 BTU (NG) / 55,000 BTU (LP) 30: 65,000 BTU (NG) / 65,000 BTU (LP) |
| Minimum Fireplace Size Requirements (W x D x H) | G46-18/20: Front width 26 in; Rear width 20 in; Depth 15 in; Height 17 in G46-24: Front width 30 in; Rear width 24 in; Depth 15 in; Height 17 in G46-30: Front width 36 in; Rear width 29 in; Depth 15 in; Height 17 in Note: For “-02” models, add 6 in to the front width and 4 in to the rear width. |

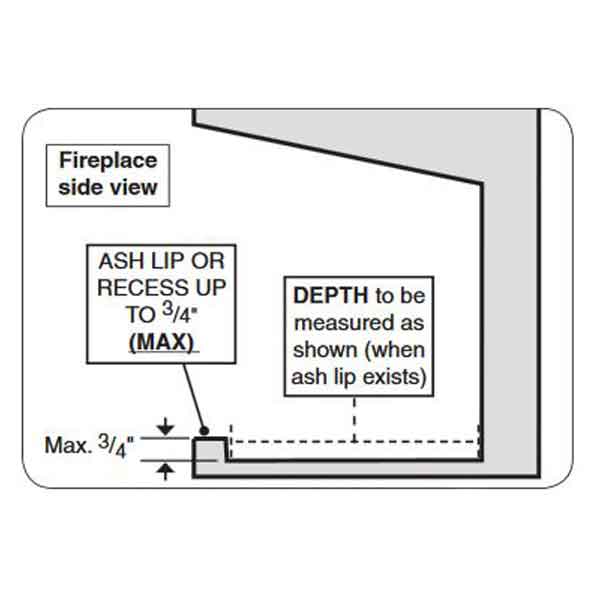

| Ash Lip / Recess Limit | Maximum 3/4 inch |
| Minimum Chimney Height | 15 ft (hearth to top of chimney) |
| Minimum Inlet Gas Supply Pressure (for input adjustment) | 5 in w.c. (natural gas)11 in w.c. (LP) |
| Maximum Inlet Gas Supply Pressure | 10.5 in w.c. (natural gas); 13 in w.c. (LP) |
| Gas Supply Line | Minimum 1/2 inch interior diameter (larger may be needed for longer runs per NFPA 54 guidance) |
| Remote/Battery Notes | “-02” burner system uses (2) D batteries; remote transmitter uses (1) 12V battery; remote receiver uses (4) AA batteries (if applicable) |
| Included Components | ANSI-certified burner with pre-assembled control valve and regulator, piezo igniter, custom grate, glowing embers, sand (NG) or vermiculite (LP), connector kit, log locators, and damper clamp |
-
Important: Any connection of gas components should be done by a licensed contractor
