Fire Magic Timer Box (1 Hour) - 5521-11T
Product Description
The Fire Magic Stainless Steel Timer Box is a built-in gas safety control designed to automatically shut off gas flow after a selected time interval. This timer box helps reduce the risk of unattended gas flow by stopping the supply at preset intervals of up to one hour.
Constructed from 304 stainless steel, the housing is intended for permanent outdoor installation and includes a weather-resistant cover to protect the internal valve. The timer dial is simple to operate and allows users to select shut-off intervals in clearly defined increments.
Key Features
- Built-in gas shut-off timer with up to one-hour operation
- Preset shut-off intervals at 20, 40, and 60 minutes
- Designed for built-in outdoor kitchen installations
- Stainless steel enclosure with protective cover
- Supports both natural gas and propane systems
Why Buy
Timed gas shut-off devices add an extra layer of safety to outdoor kitchens by limiting how long gas can flow during use. This timer box helps prevent accidental gas exposure while supporting the normal operation of grills, side burners, or other gas appliances.
Practical Note
Installation should be performed by a qualified professional and must comply with local gas codes. After installation, all connections should be leak-tested before operating connected appliances.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Fire Magic |
| Model Number | 5521-11T |
| Product Type | Gas shut-off timer box |
| Fuel Compatibility | Natural gas and propane |

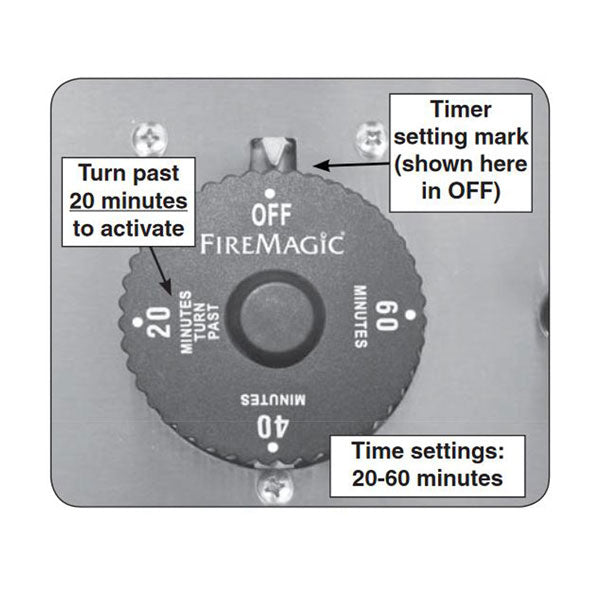

| Timer Settings | 20, 40, and 60 minutes |

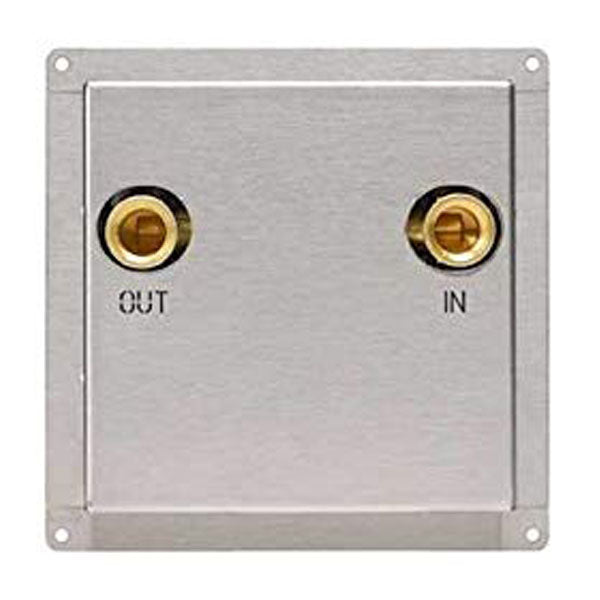

| Connection Size | 1/2" inlet and outlet |
| Housing Material | 304 stainless steel |

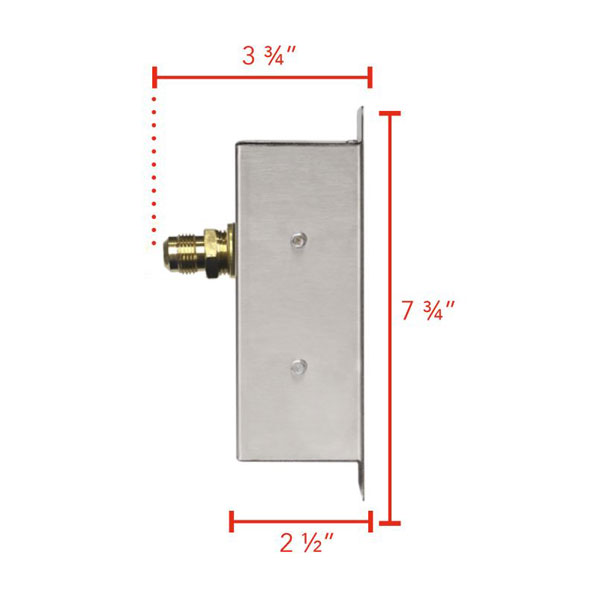

| Overall Dimensions | 8 1/2" W x 7 3/4" H x 2 1/2" D |
| Cutout Dimensions | 7 1/2" W x 6 1/2" H |
