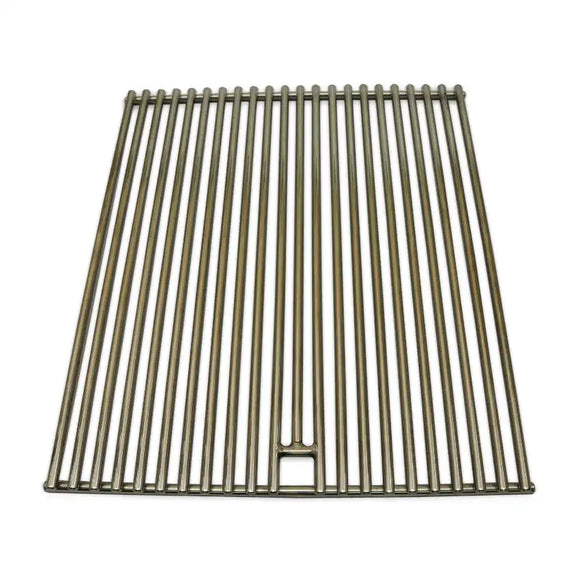

Lynx 34706 Cooking Grate for 36" & Legacy 48" Grills
Product Description
A damaged outer grid can leave part of the cooking surface unstable even when the remaining grates are still usable. Lynx part 34706 provides the primary cookware-support surface above the grill burners.
You can replace only the damaged section. Grates that are still in good shape can stay in use. Some Lynx grills use different outer and center grates, so check the grid position with care.
Key Features
- Replaces only the worn section when the remaining cooking grids are still serviceable.
- Returns dependable support for cookware and food above the burners.
- Follows the original position-specific Lynx cooking-grid layout.
Compatible Applications
36" and legacy 48" Lynx Professional grills using this grate format.
Production series: Series 0, 1, E, F, G, H, J, K, L, M, N, Q, and U.
Fitment and Ordering Notes
Find the model and serial label before you order Lynx part 34706. Check the model, production series, and old part. Do not confuse this part with the additional center grid used in some 48-inch configurations. A similar look, grill width, or size does not prove that the part will fit.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Lynx |
| Part Number | 34706 |
| Product Type | Stainless steel cooking grate / outer cooking grid |
| Legacy Reference Number | 17020 |
| Package Contents | 1 cooking grate |
| Listed Dimensions | 16.5" x 18.5" (419 x 470 mm) |
Frequently Asked Questions
Where can I find my Lynx model and production series?
Check the rating label for the full model and serial number. The label may be near the control panel, cabinet, or grill body. Check the owner's manual if you cannot find it.
Should every cooking grid be replaced at the same time?
No. Replace grids that are broken, badly warped, weak, or unable to sit safely. Grids that are still in good shape can stay in use.
Does heat discoloration mean a cooking grid has failed?
No. Heat can change a grate's color during normal use. Replace the grid if it is weak, badly warped, or unable to sit safely.
What if the replacement grid does not sit level?
Stop and check its position, the nearby grids, and the support ledges. Do not force a grid that rocks, overlaps another grid, or touches parts below.
